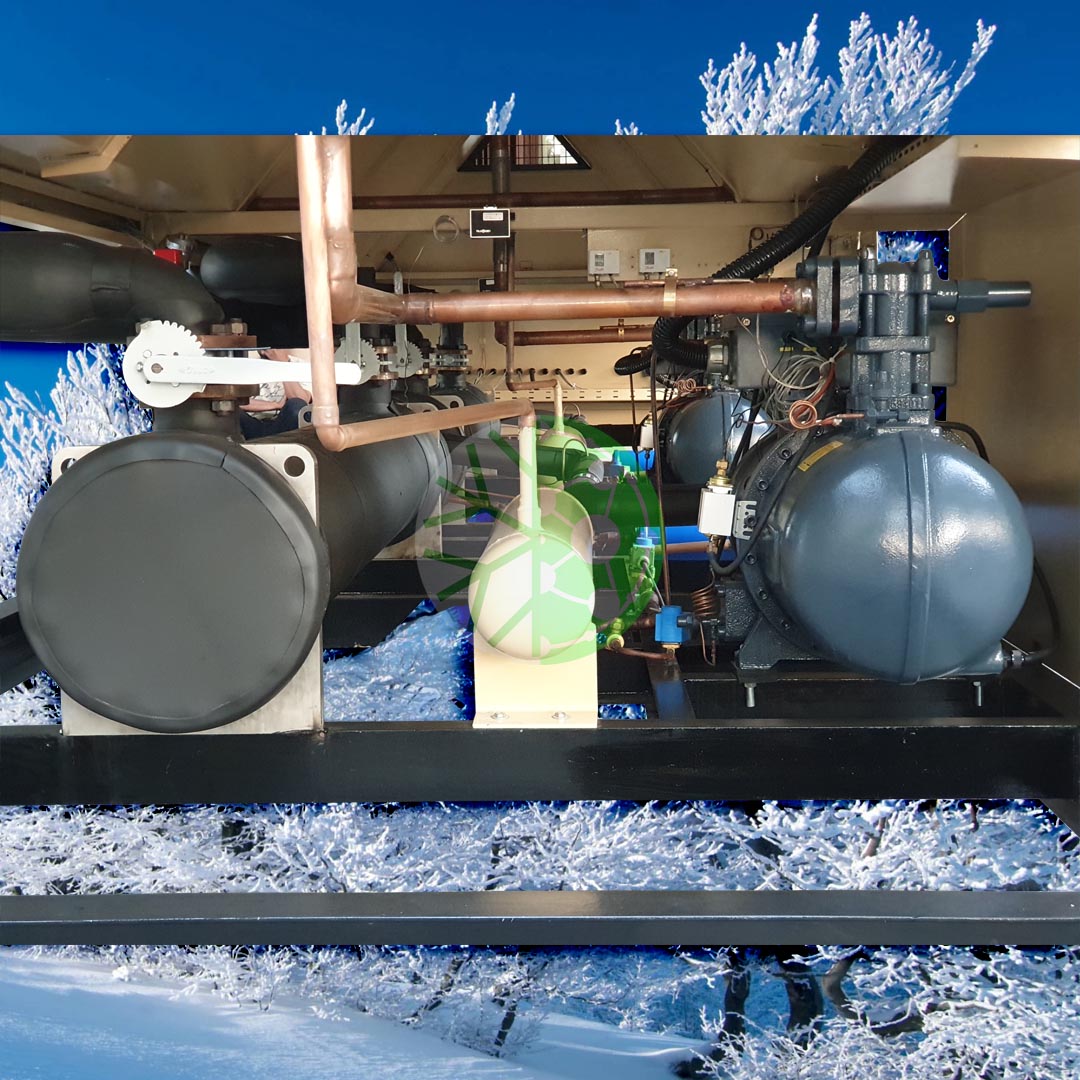

Air Cooled Screw Chiller
Capacity : 80 KW to 430 KW


Air cooled screw chiller adopts branded screw type compressor, high efficient copper condenser, evaporator and famous control components, which features compact size, low noise & vibration, high cooling capacity, easy operation and durability.

This kind of air cooled screw type chillers are used widely in plastic industry, electrons, plating, chemical industry, ultrasonic wave cooling, printing and others.

Winter-Tech now supplies air cooled screw chillers in various standard specifications, and customer screw chillers are also welcomed to match your special needs.

Compressor features
  1. New screw type compressor with 20%-30% higher in efficiency.
  2. Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
  3. High efficiency, low noise and vibration, easy to install.
  4. Enviromental protection refrigerant R134a,R407c available
Control Operation System
  1. SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
  2. Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function

Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.

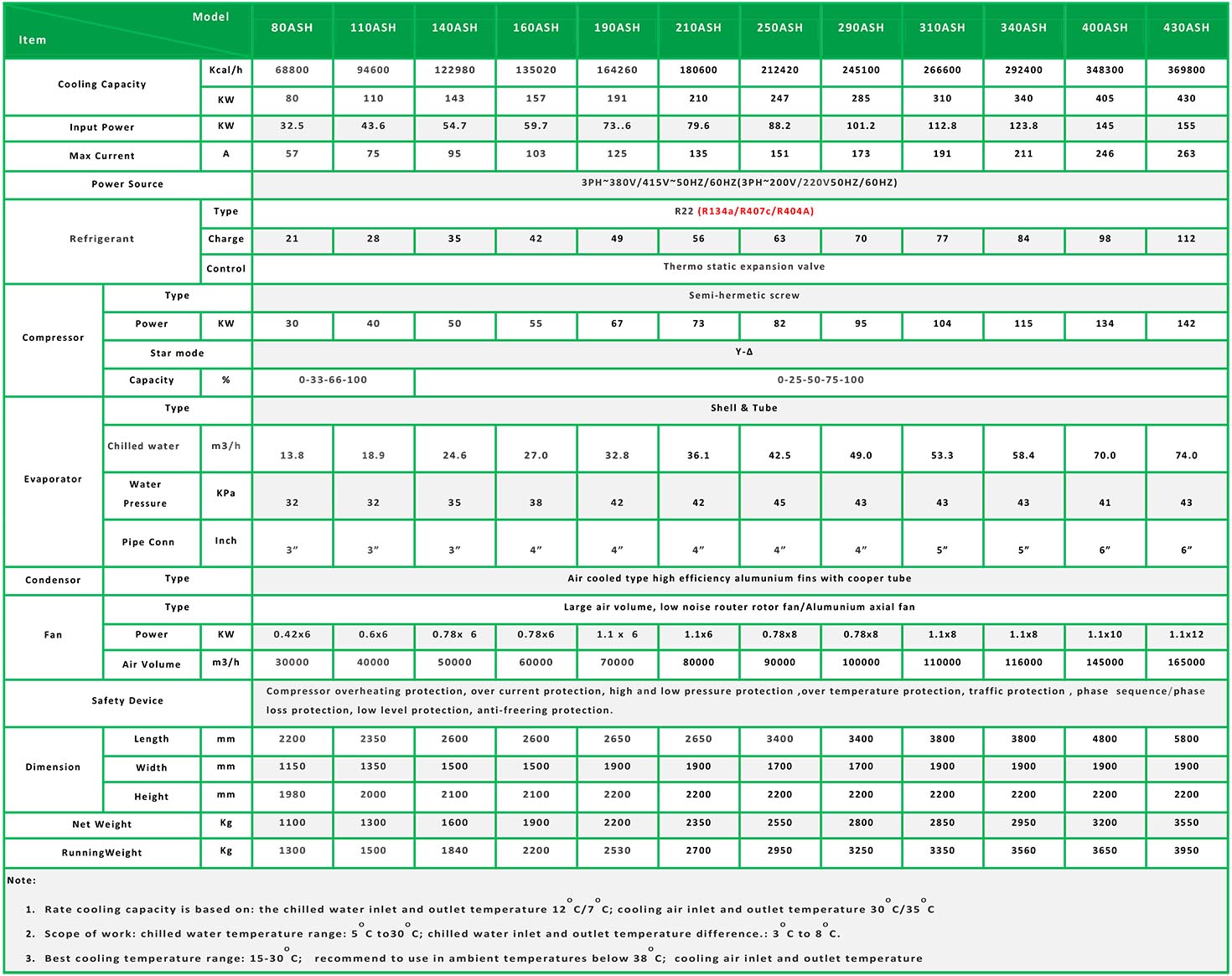

Technical Parameter
