Water Defrosting Evaporator
Cold Room Evaporator

Brief Introduction

Water defrosting type Evaporator(Air Cooler),which been widly used for some special cold storage where electrical defrosting is prohibited or where quick defrosting is required. There are 3 series based on different cold storage temperature.

  • ESTJSS: cold storage temperature around 0°C;
  • ESTKSS:cold storage temperature around -l8°C;
  • ESTXSS:cold storage temperature around -25°C;
Features of Evaporator (Air Cooler)
  1. With steel plate coating casing,corrosion-proof,attractive apperance;
  2. Aluminum fins around mechanically expanded copper tube make the coil with high efficiency heat exchange;
  3. With water defrosting resulted in high defrosting efficiency and quick defrosting speed;
  4. Standard power supply is 380V-3PH-50HZ,and other kinds of power supply is optional;
  5. Long distance air duct is optional;
  6. Stainless steel casing is optional.
  7. Anti-explosive fan motor is optional.

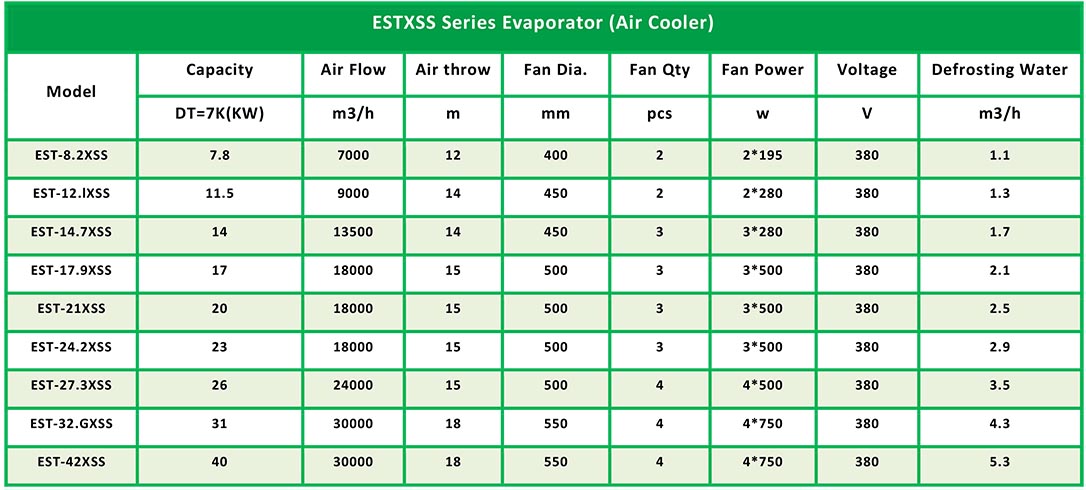

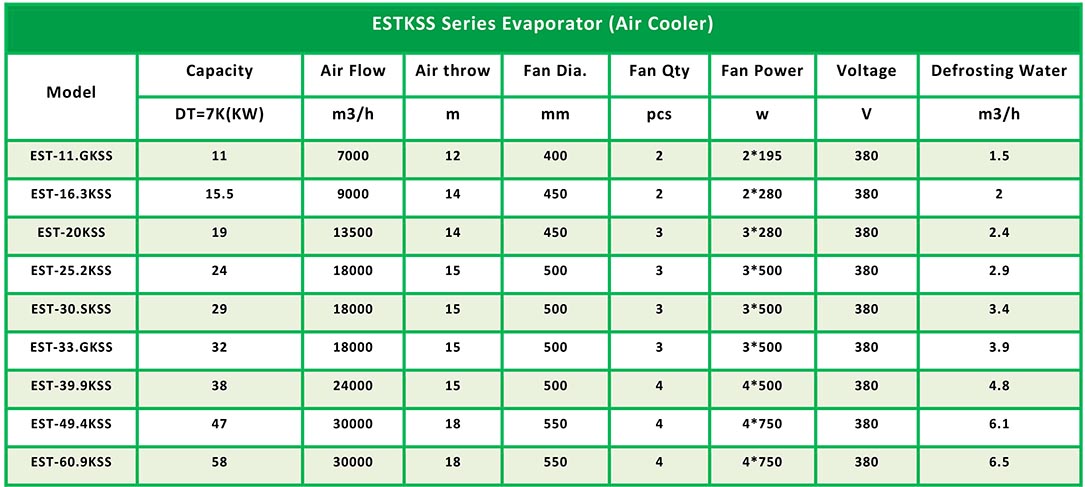

Technical Parameter and Overall Size

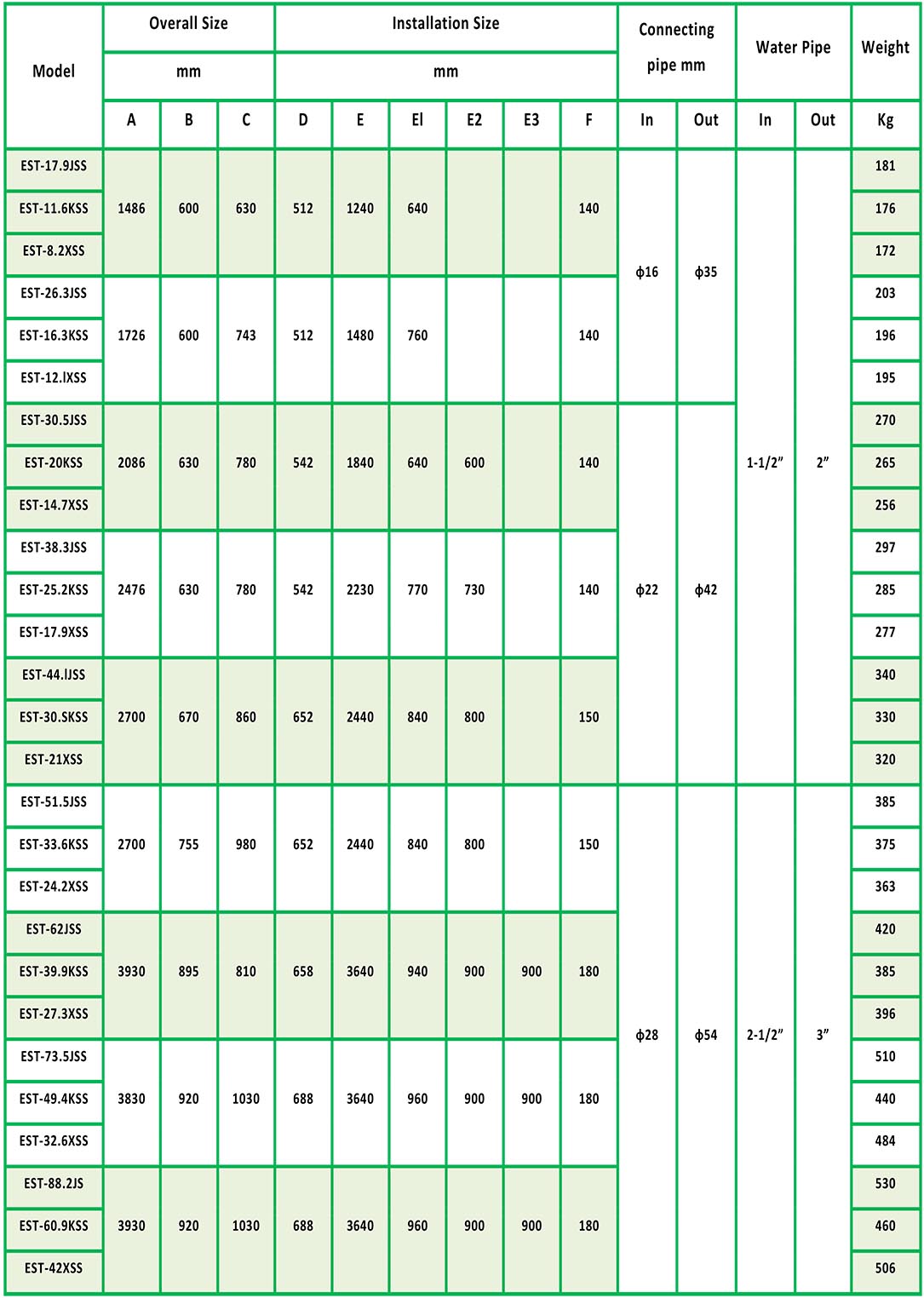

Overall and Installation Size
